Trilo / Taptite & HexaLobular  screws from Rolling thread process with heat treatment

Can be driven into malleable materials like aluminium or non forrous material through a pilot hole without the need for thread tapping

Thread forming screws (trilobular)

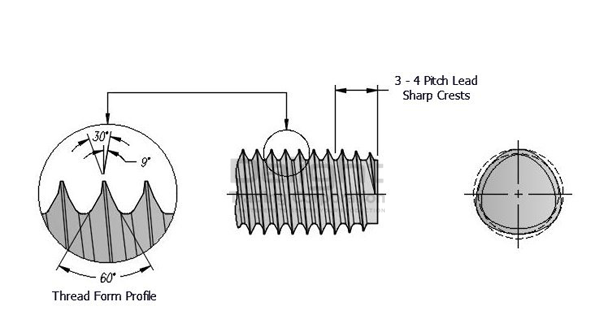

Machine screw with metric coarse thread and trilobular configuration.

When threading into the substrate, the trilobular shape of the thread work hardens the substrate creating a smooth grain flow within the metal. This lowers the drive torque required for insertion and minimizes loosening caused by vibration. It also eliminates the formation of chips during insertion.

Since these screws form mating threads, it eliminates the need for tapping resulting in huge saving in terms of money and time. Moreover, there is even no need for locking washers.

Reference standards

StandardsDIN 7500DIN 7985 (C head)Equivalent : ISO 15480;ISO 14583; CSN 021223BN 3326BN 10812BN 13278BN 2724BN 4908BN 13916BN 5653BN 2723BN 3327BN 4919

Head Types

Trilo head typesHex
Hex Flange
Pan CSK
Hex philips
Flanged Hex Philips

Recess

RecessPozi
Torx

Steel Type

Hardened mild steelHardness of sheet upto 65000 psi
Stainless steel(preferred for aluminium & non ferrous metals)

Head drive types

Head drive typesPhilips, torx, slotted

Surface treatment

Surface treatmentZinc plated for MS only

Threading methods

Threading methodsThread Cutting, Thread Grinding, Roll Forming, Thread Casting and Molding

Unique Features

Unique featuresHighest torsional strength
Reliable axial holding power
ROHS / REACH compliance
Ideal for scalable mass production
Less torque and stress on the material being tapped
No slippages
